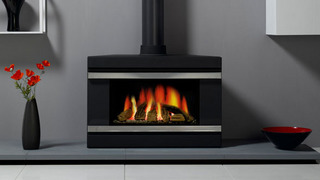

Gazco Riva F67 Balanced Flue Gas Stove
Maximum heat output Kw (NG) Up to % efficient Manual or optional extra Standard or Thermostatic Remote control available Log fuel effect Glass fronted free standing balanced flue gas stove Matt Black with Polished Steel Inserts Designed for homes with a Class 1 Chimney, Class 2 or Prefabricated flue This Stove can be Top flued only (using 5"Gazco stove pipe and top exit flue collar code 8549 where required) This Stove is a Top exit and uses the optional extra flue kits available shown below in "select your optional extras". Choose from either a 1. Top exit up & out Stainless Steel flue kit comprising of 1 x 462mm straight, 1 x 500mm terminal length, 1 x 90 degree bend or 2. Top exit up & out Anthracite flue kit comprising of 1 x 462mm straight, 1 x 500mm terminal length, 1 x 90 degree bend (Note: A terminal guard will need to be purchased if the stove terminal is installed below 2 metres from the ground on Top flued applications only) Depth of 420mm

Fuel Effects

Gas Types

Gazco Natural Gas (NG)

Gazco Propane Gas (LPG)

Controls

Gazco Rotary Manual Control	Gazco Standard Remote Control	Gazco Thermostatic Remote Control

Optional Extras

Gazco Top Exit (CF) Flue Collar Matt Black	Gazco Terminal Guard (required for below 2m)	Gazco Bespoke Balanced Flue Stove Kit
Gazco S/S Top Exit, Up & Out BF Stove Kit	Gazco Anthracite Top Exit, Up & Out BF Stove Kit	Gazco Riva F67 Bench ^Bench Only

Please call 0845 301 5552 for a price

Specification

External Dimensions H 592**mm W 880mm D 420mm Inset Dimensions H N/Amm W N/Amm D N/Amm OutPut NG Maximum Heat Input 6.1Kw Maximum Heat Output 4.6Kw LPG Maximum Heat Input 5.8Kw Maximum Heat Output 4.4Kw

Details Contemporary Balanced Flue Gas Stove Flue Balanced Flue Gas Fire Ventilation An air vent is not normally required Shelf Clearance 225* SideClearance 150*

Notes

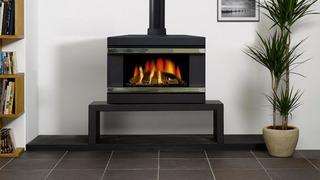

With Bench
Click photo to go to Pedestal version

NOTE:
The delivery service offered on this product is based on a one man only delivery. Due to the nature and weight of this product, you will need to arrange additional assistance to offload the goods from the vehicle when it arrives at your premises.*Suggested clearance to the rear is 50mm
**Height with Bench is 942 (The bench itself is W 1200 x H 350 x D 420 mm)

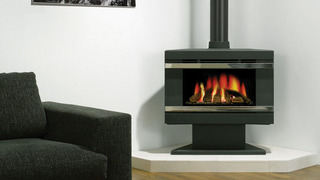

Height with Pedestal is 843mm

Please ensure to have a survey carried out by a Corgi registered gas installer to check and certify the compatibility of your chimney or flue with this stove before making any purchase to avoid disappointment. This stove does not require any electrical supply, but does require a natural gas or liquid propane supply. Also be aware that due to the stove producing heat the interior / exterior of the stove may become marked over time through general wear and tear which is quite normal and to be expected. The inside of the glass may also require cleaning from time to time due to condensation that may form on the inside of the glass. Please note that whilst soot deposits on a gas stove are quite normal and to be expected they will be visable on a log fuel effect. Gazco standard remote control option allows the flame height to vary between high and low from your armchair once the pilot has been ignited manually. Whereas the thermostatic remote offers all the same benefits as the standard remote control, you also have the added benefit of being able to programme the fire to switch itself on and off twice a day and to heat the room to the temperature you select. For more detailed technical information about this product including down loadable user & installation instructions, Simply click on the following link www.Gazco.co.uk If you would like to view this product before you purchase, please contact Gazco directly who will be able to advise you on your nearest dealer.
